Overview
50kg Single-sided Vertical Ring Belt Dynamic Balancing Machine is mainly a hard support balancing machine composed of high-precision mechanical part and advanced electrical part. The training product of this department is one of the single-sided vertical hard support balancing machines independently developed, designed and manufactured by our company according to the core technology at home and abroad. It is an advanced model in the world at present.
Features
The ring belt balancing machine adopts advanced electrical measurement system, with diversified measurement methods, dynamic and static balance, up to 10 support modes, and can be flexibly customized for weight addition and removal, forward and reverse rotation. High measurement accuracy, multiple calibration coefficient combination, automatic adjustment of system sensitivity, no jump in gear shift, dual filtering of software and hardware, high-speed data compression, more stable, accurate and faster measurement
Technical Parameters
| Model | HZ-9734 |
| Max Mass of Workpiece(kg) | 50 |
| Max Diameter of Workpiece(mm) | Φ700 |
| Distance between two support seats | 80-800 |
| Bearing diameter range | Φ8~80 |
| Speed ( the diameter of workpiece transmission : 100mm) | 225 + electrodeless speed |
| Diameter range of circular belt drive | Φ18~200 |
| Motor power | 0.75 |
| Minimum attainable residual unevenness | ≤0.5g.mm/kg |
| Note: The technical parameters of the above series of balancing machines are for reference only. The specific parameters and quotations need to be determined according to the actual situation of the rotor of the user's workpiece, and can also be customized. |

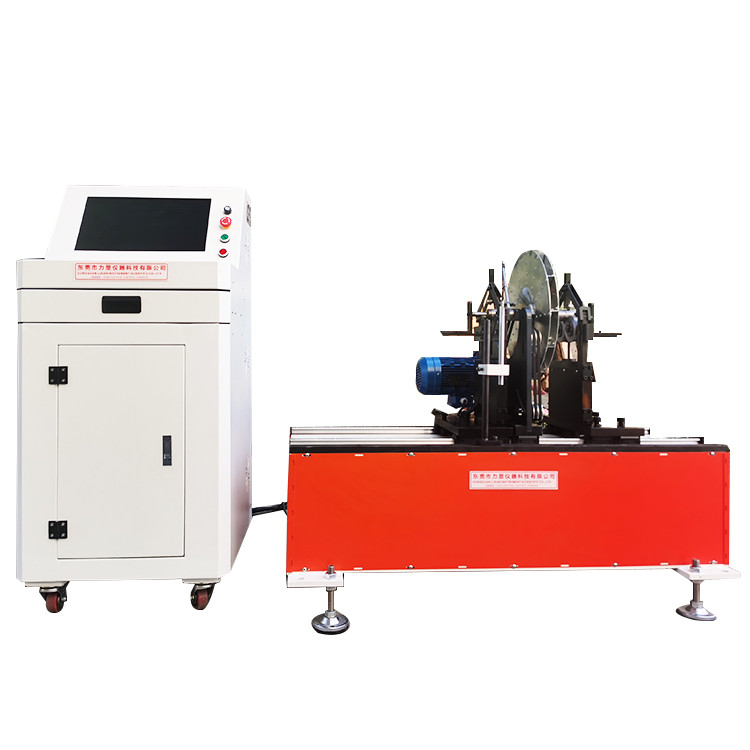

Detailed Images
Application scope:
The ring belt balancing machine is widely used in the balance correction of rotating workpieces such as rotors, impellers, crankshafts, rollers and shafts of all kinds of small and medium-sized motors. The ring belt drive ensures the balance quality and accuracy of the workpiece, and has the characteristics of convenient loading and unloading, fast start-up and high work efficiency.
