2000KN 3000KN Concrete Compression Test Machine For New Brick Stone Cement

Name: 2000KN 3000KN Concrete Compression Test Machine For New Brick Stone Cement
Brand: lixian
Price: 1 USD

2000KN 3000KN Concrete Compression Test Machine For New Brick Stone Cement Manufactures

Brand Name : lixian

Model Number : HZ-009

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200sets/ month

Delivery Time : 7 days

Packaging Details : Standard safety export woodcase

Model : HZ-009

Max load : 2000KN/3000kn

Test force measuring range KN : 4%-100%FS

Test Force Resolution : 0.03kN

Hydraulic pump rated pressure : 40MPa

Upper and lower bearing plate size : 370×370mm

Maximum distance : 330mm

Piston diameter : φ250mm

Piston stroke : 50mm

Motor Power : 0.77 kW

Weight : 2000kg

Contact Now

Full-Automatic Concrete Compression Test Machine 2000KN/3000KN Load For New Brick, Stone, Cement High-Precision Sensor

Concrete Compression Test Machine Equipment Overview

HZ-009 Concrete Hydraulic compression testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test, also used to test the compressive performance of other materials.

Concrete Compression Test Machine Spatial Adjustment Method

Electric lift

Concrete Compression Test Machine Hydraulic System

The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.

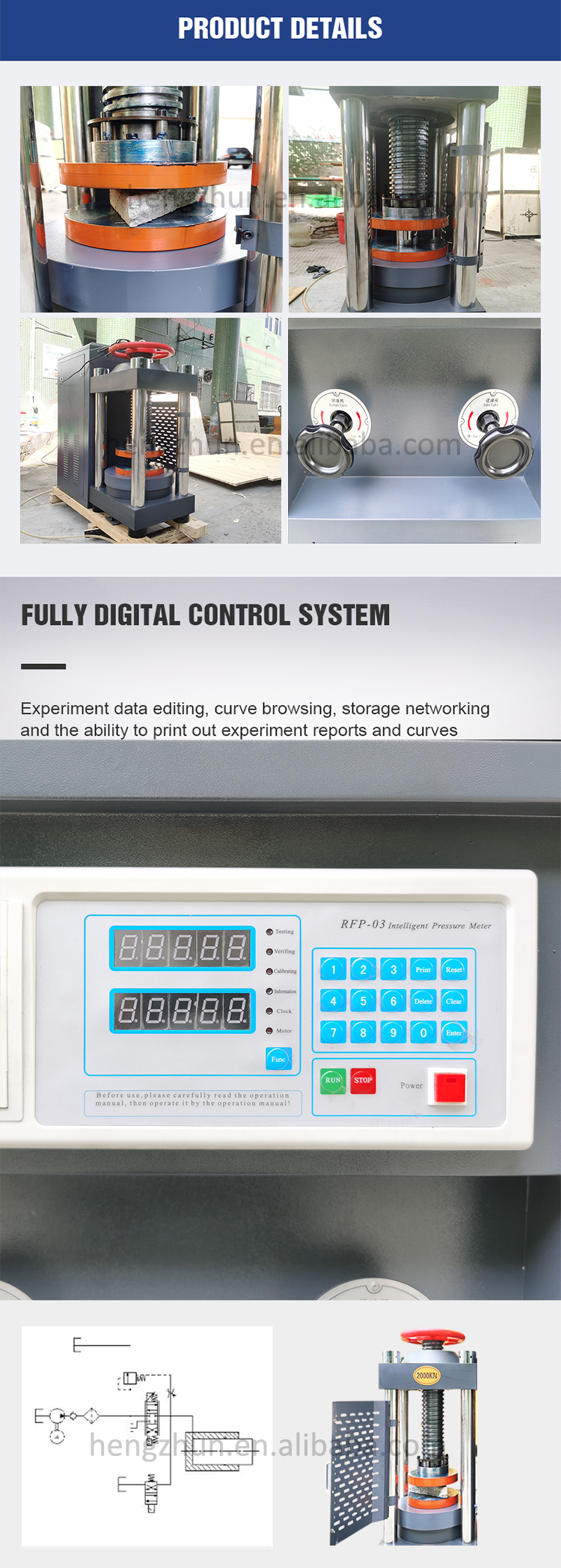

Concrete Compression Test Machine Control system

System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.

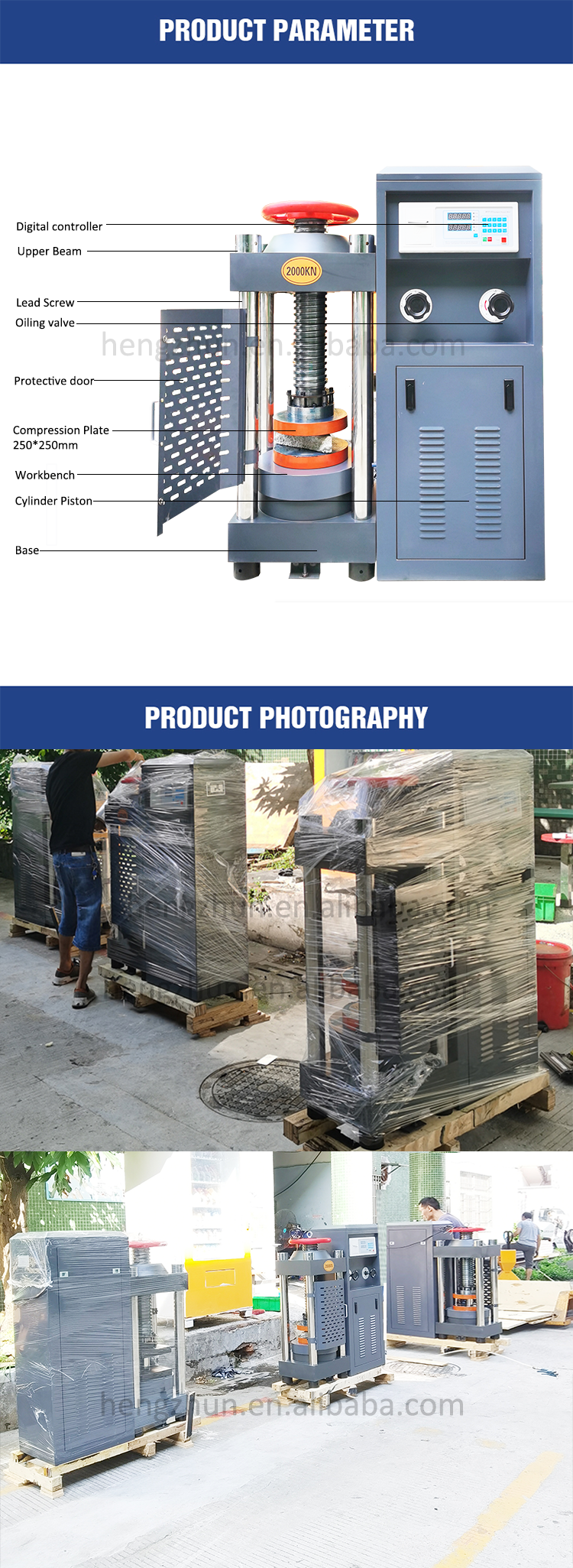

Concrete Compression Test Machine Main Performance Technical Specifications:

Max load	2000kN	3000kN
Test force measuring range	4%-100%FS
Test Force showed the relative error	≤ indicating value±1%	<±1%
Test Force Resolution	0.03kN	0.03kN
Hydraulic pump rated pressure	40MPa
Upper and lower bearing plate size	370×370mm	500×500mm
Maximum distance	330mm	500mm
Piston diameter	φ250mm	φ310mm
Piston stroke	50mm	100mm
Motor Power	0.77 kW	1.1kW
Outside dimension (lwh)	640×720×1500 mm	780×720×1950 mm
Weight	2000kg	2500kg

Concrete Compression Testing Machine HZ-009.pdf
