Vertical Low-Temperature Leather Testing Machine 50Hz With JIS-K6545 Standard

Name: Vertical LowTemperature Leather Testing Machine 50Hz With JISK6545 Standard
Brand: Lixian
Price: 800 USD

Vertical Low-Temperature Leather Testing Machine 50Hz With JIS-K6545 Standard Manufactures

Brand Name : Lixian

Model Number : HZ-3011b

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Price : USD 800~3000 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : 7 work days

Packaging Details : Wooden case

Standard : ASTM-D1790,D1593,JIS-K6545

Temperature range : Normal temperature ～ -30℃

uniformity : ≤±0.5℃/.+2℃-3℃

Cooling time : -25℃～-30℃

timing : 0.1～999.9（S、M、H）adjustable

Voltage : AC380V±10％ 50±0.5Hz Three-phase five-wire system

environmental temperature : 5℃～＋30℃ ≤85％R.H

Application : Leather ，shoes Testing

Name : Leather Testing Equipment

Warranty : 1 year

Contact Now

Vertical Low-Temperature Testing Machine Cooling Time -25℃～-30℃(About 80min) With JIS-K6545 Standard

Equipment Overview

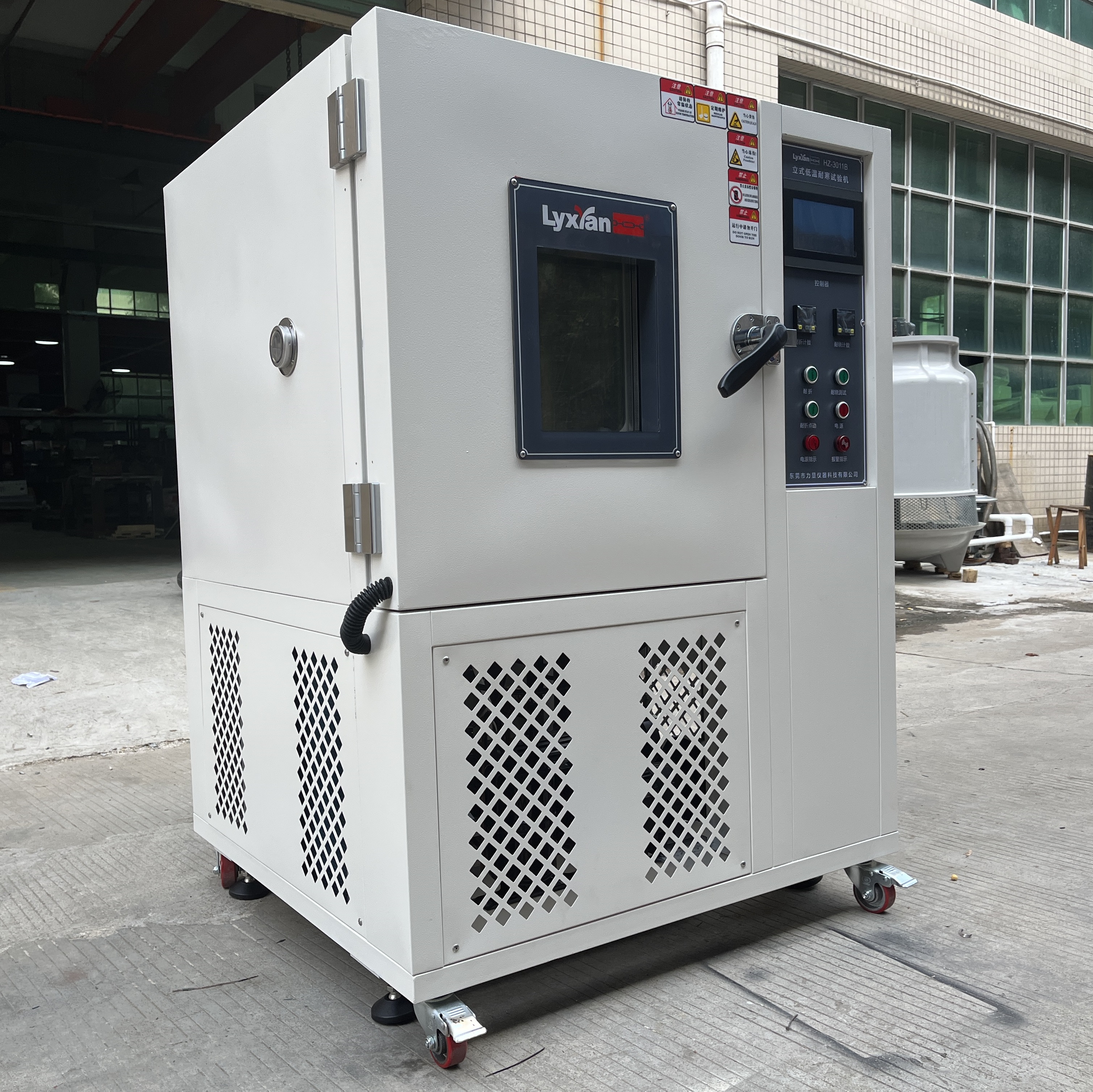

HZ-3011B Vertical low-temperature testing machine is a machine which adopt vertical design, do not have to bend over to grip specimen, easy to operate, thus more handy, it used to test the finished shoes, rubber, plastics, shoe soles, synthetic leather and other material in a cryogenic or cool regions environment. The machine is made of stainless steel, and can install various fixture to suit different requirements.

Standard
operative standard :ASTM-D1790,D1593,JIS-K6545

Applicable Industry
Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments

Technical Parameters

Model	HZ-3011B
Standard	ASTM-D1790,D1593,JIS-K6545

Inside size D×W×H		400×500×400mm(LWH)

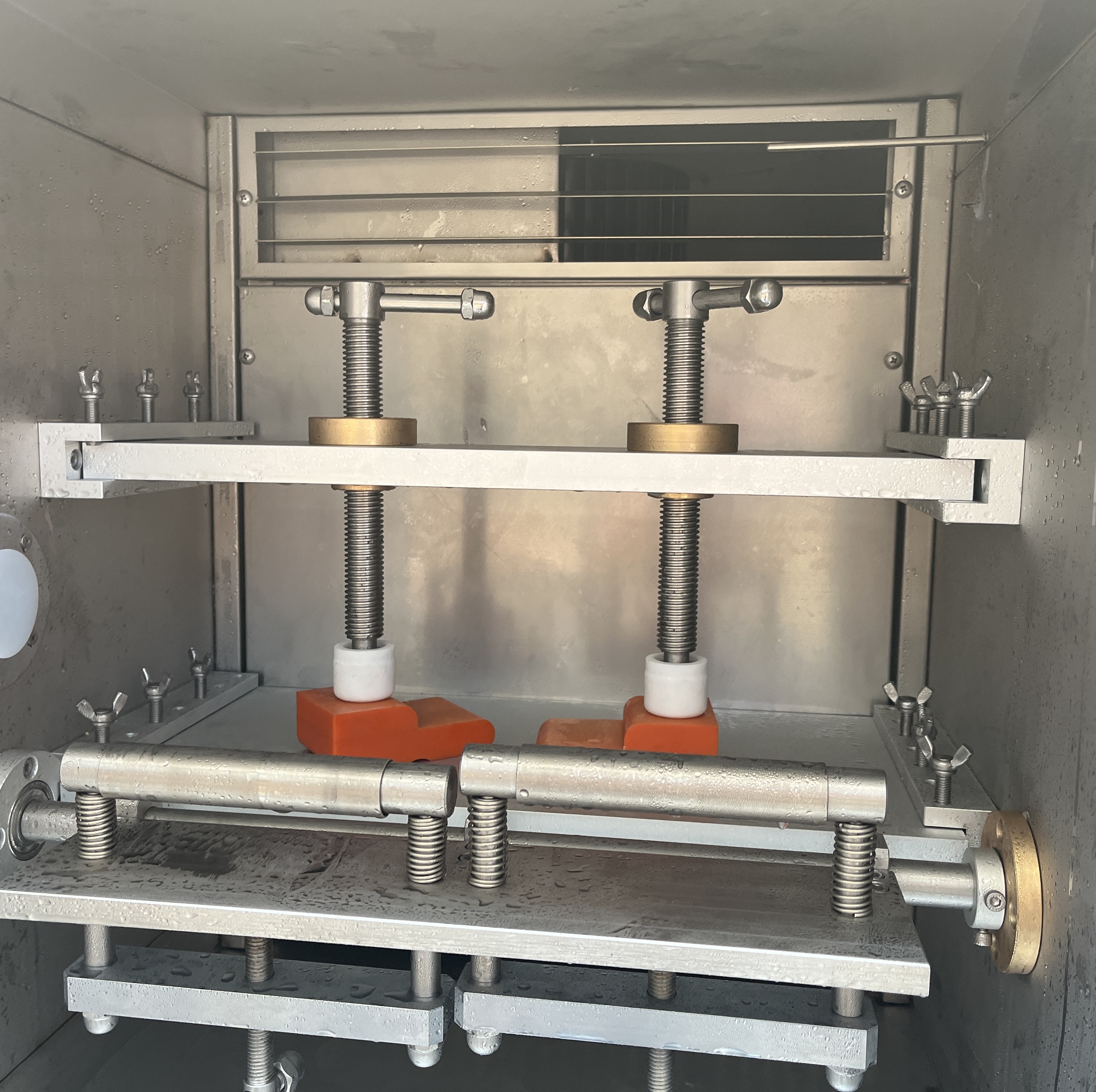

fixture		Based on actual demand, such as sole folding, leather folding and shoes folding
index	Temperature range	Normal temperature ～ -30℃
	uniformity	≤±0.5℃/.+2℃-3℃
	Cooling time	-25℃～-30℃(about 80min)
material	Outside material	High-quality carbon steel plate. Phosphide electrostatic spray treatment / SUS304 stainless steel hairline treatment
	Inside material	SUS304 High-quality stainless steel light board
	Insulation material	Rigid polyurethane foam, ultra-fine glass fiber cotton
Standard collocation		a set of Multi-heated glass window attached lighting, testing product shelf 2 pcs, test leads holes (25,50 mm) 1 pcs
Safe protection		Leak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection
timing		0.1～999.9(S,M,H)adjustable
Power		2.5KW
Voltage		AC380V±10％ 50±0.5Hz Three-phase five-wire system
environmental temperature		5℃～＋30℃ ≤85％R.H
annotation: 1. Above data were measured at temperature (QT) 25 ℃ and no-load condition. 2. Can be customized non-standard-type high-low-temperature testing machine according to use’s requirements
