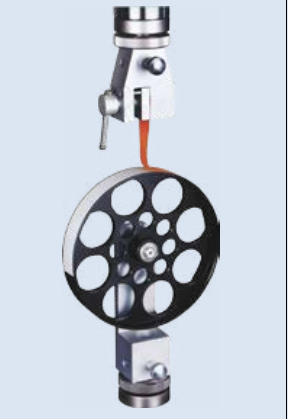

Grips Clamp Tensile Tester UTM-HZ-B020 For Tapes / Films / Ductile Circuit Board

Name: Grips Clamp Tensile Tester UTMHZB020 For Tapes Films Ductile Circuit Board
Brand: lixian
Price: 1 USD

Brand Name : lixian

Model Number : UTM-HZ-B020

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : negotiate

Delivery Time : 7 days

Packaging Details : wood

Product name : Utm Grips UTM-HZ-B020

Max. Capacity : 200N

Specimen Width : 25.4mm

Grip Weight : 949g

Grip Material : Aluminum Alloy

Temperature Limits : -10°c~+100°c

Applicable Adapter : HZ-02

Specimen Thickness : 0.1~3mm

Application : Tapes / Films / Ductile Circuit Board

warranty : 1 year

Contact Now

Universal Testing Machine UTM Clamp Tensile Tester Grips and Compression Tester Fixture

Tensile machine can test different sample materials, fixture, the reason is that can be equipped with different tensile test machine fixture by force in sample making tension tester can test samples of all kinds of force values such as stretching, stretching, compression, shear, tear, peel, such as mechanical properties, The former is completely rely on artificial operation to clamp the style and the latter is the application of pneumatic principle and hydraulic principle will clamp the style, generally speaking, the price of manual fixture is not hydraulic fixture and pneumatic fixture high. the fixture is one of the most important parts of tensile machine, Different materials need to choose different fixtures to ensure the accuracy of the test, if according to the different power sources can be divided into: manual fixture, pneumatic fixture and hydraulic fixture.

Model	UTM-HZ-B020
Max. Capacity	200N

Specimen Width	25.4mm
Specimen Thickness	0.1~3mm
Specimen Distance	-
Grip Weight	949g
Grip Material	Aluminum Alloy
Temperature Limits	-10°c~+100°c
Min Load Cell	-
Applicable Adapter	HZ-02
Application	Tapes / Films / Ductile Circuit Board
Anvil Radius	-

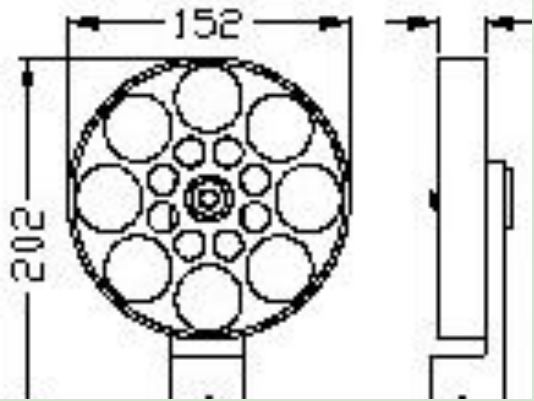

Diagram

Lixian UTM Grips series-2020.pdf
